The precision achieved with CNC machining makes mass production a reality.
The CTCNC36C is driven by a powerful 5.5kW motor capable of spinning the A2-5 precision spindle at speeds from 100–3000 RPM.
The X/Z axes are equipped with high-precision linear guides, achieving X/Z repeatability of 0.01mm, flatness of 0.03/300mm, and surface roughness of 0.8-1.6. It operates at extremely high speeds, easily handling complex tolerances.
Модель :
CTCNC36CКачели над кроватью :
350mmКачание над поперечным суппортом :
130mmМотор :

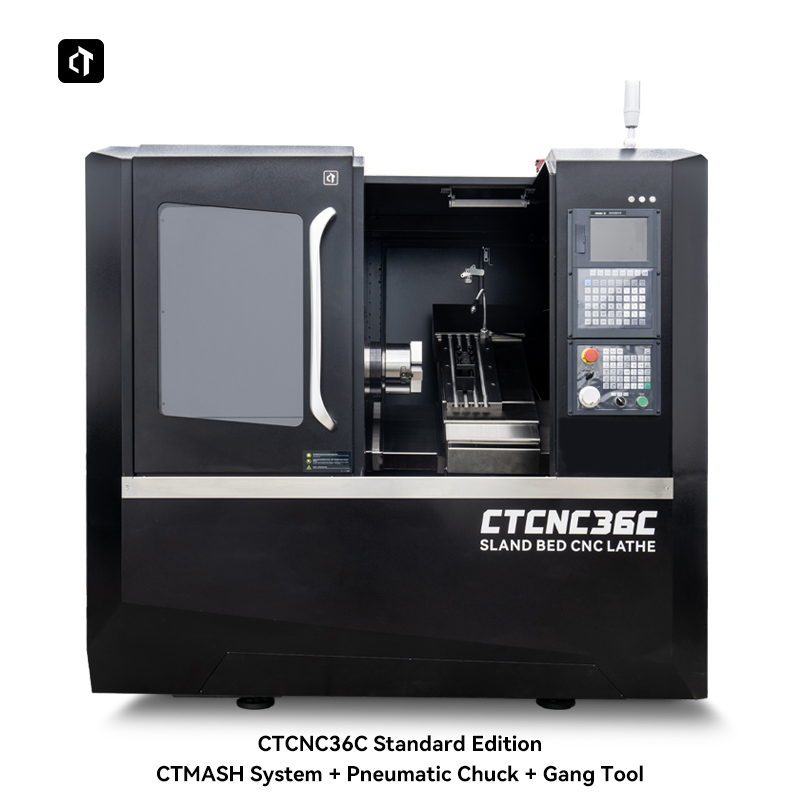

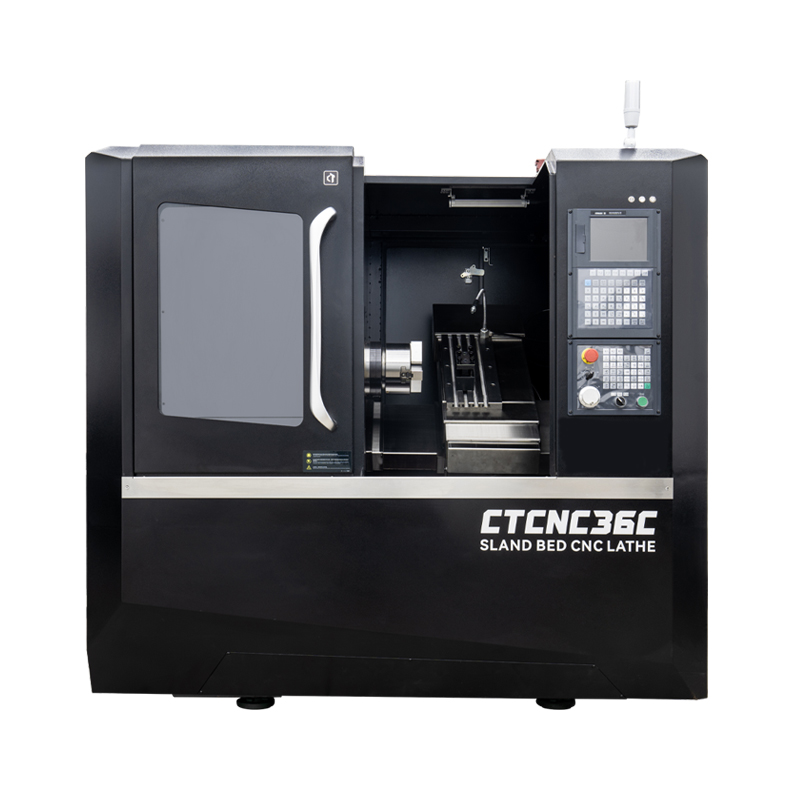

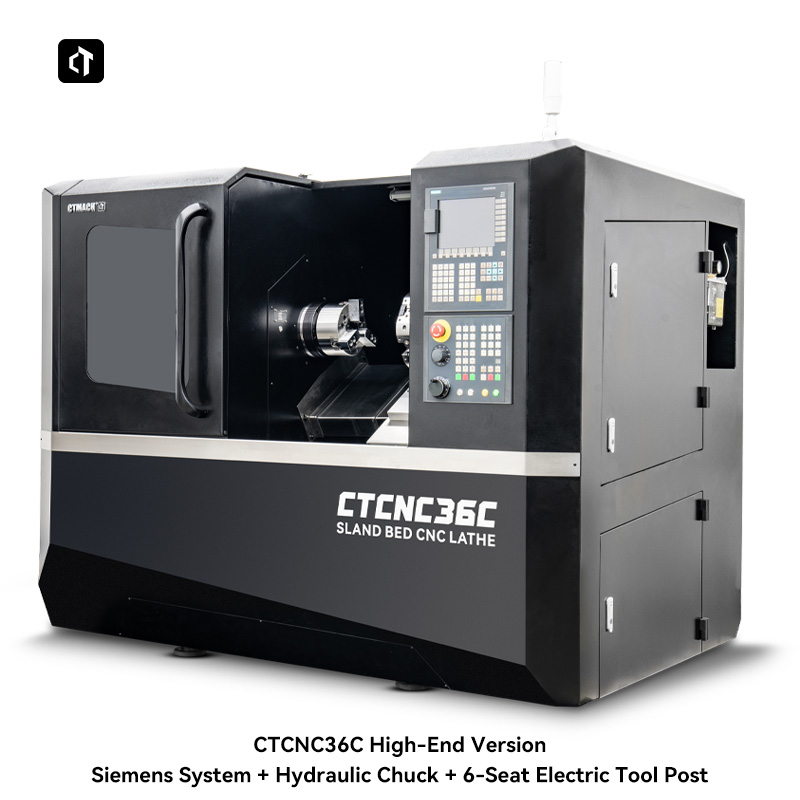

5.5KWCompact, high-rigidity slant bed turning center.
The slant bed features a triangular load-bearing structure, providing strong load-bearing capacity and preventing deformation during machining of large workpieces and heavy cutting, ensuring stability even under heavy-duty cutting.
High-performance CNC system with feed servo drive and servo motors ensures high precision and strong overload resistance.
High-precision linear guides on the X/Z axes ensure accurate positioning, extremely high speed operation, and effortless handling of complex tolerances.
The traditional slant bed design utilizes gravity-fed natural chip removal, eliminating chip entanglement and making it suitable for high-intensity automated continuous production.
The high-rigidity spindle unit provides ample torque at low speeds and smooth rotation at high speeds, making roughing and finishing operations effortless.
It features a complete automatic lubrication and cutting fluid circulation system.
Three-color status indicator lights provide clear visibility of the operating status.
| CTCNC36C Machine Specifications | ||
| Machine Tool Model | CTCNC36C | |
| Machine Dimensions | 1800*1300*1850 | |
| Controller | According to Customer | |
| Servo Motor | According to Controller | |
| Machine Weight | 1550KG | |
| Machine Type (Integrated) | ||
| Bed Structure | Inclined Bed with Roller Linear Guides | |
| Machine bed | X-axis | Slide 700 |
| Z-axis | 300* 1000 | |
| Protection form | Stainless steel full protection | |

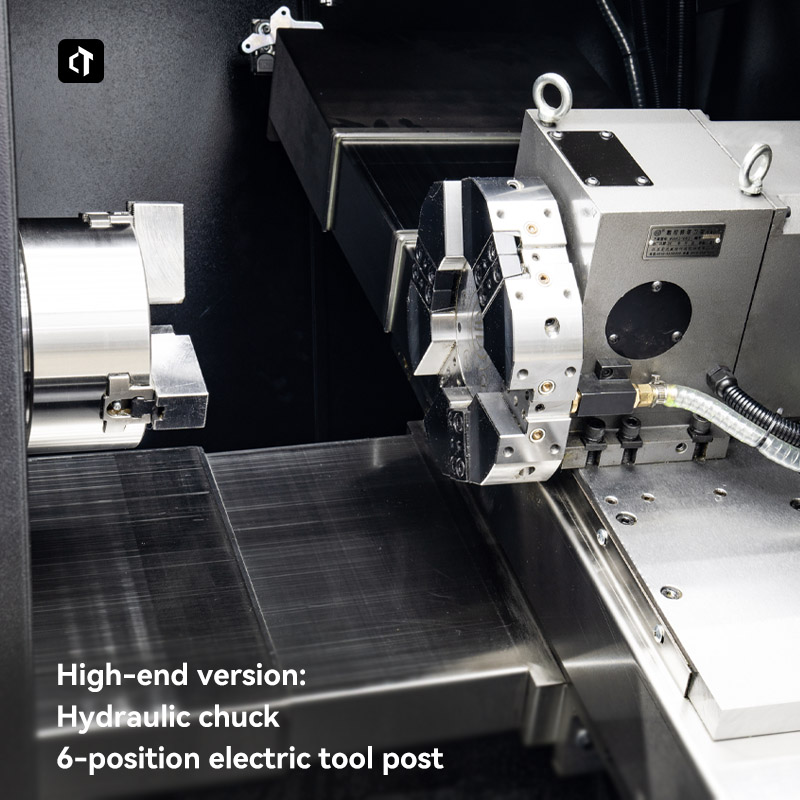

| Clamping form | Hydraulic clamping | |
| Working Light | LED lighting | |
| Three-color light | LED three-color light | |
| Working scope | ||
| Max. swing diameter | 350mm | |
| Max. swing diameter of the carriage | 130mm | |
| Max. length from spindle end to support plate | 380mm | |
| Tool center height | 65mm | |
| Feeding part | ||
| X-axis maximum travel | 700mm | |
| Z axis maximum travel | 350mm | |
| X-axis maximum moving speed | 15000mm/min | |
| Z axis maximum moving speed | 15000mm/min | |
| Spindle part | ||
| Spindle applicable chuck specifications | Diameter 52 | |
| Spindle flange interface | A2-5 unit spindle | |
| Spindle head runout | 0.005mm | |
| 7215 | ||
| Spindle bearing specifications | 7213 | |
| P5 | ||
| Spindle bearing brand | Ningfan | |
| Spindle inner opening dimensions | 22° | |
| Spindle through hole diameter | 42mm | |
| Max. spindle speed | 100-3000r/min | |
| Spindle motor power | 5.5KW (ordinary motor) | |
| Spindle adapter chuck | ||
| Screw part | ||
| Screw style | Ball Screw | |
| Screw brand | HUIRUI | |
| X-axis lead screw specifications | 2508 | |
| Z-axis lead screw specifications | 3210 | |
| Tool holder part | ||

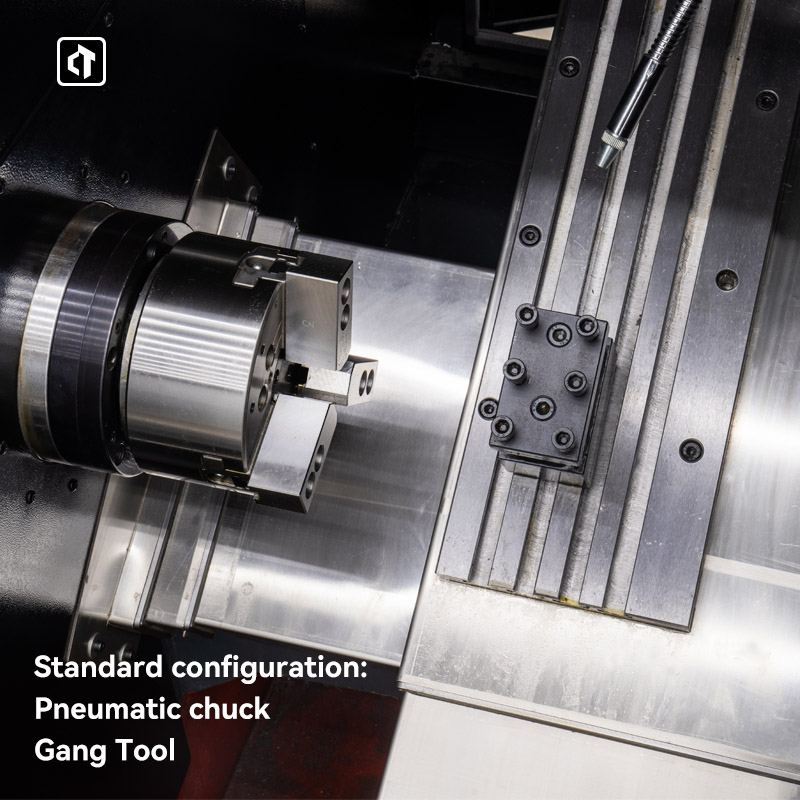

| Tool holder form | Tool rack/electric tool rack (Optional) | |
| Applicable handle | 20mm Square | |
| Accuracy | ||
| X-axis or repeat positioning accuracy | 0.01mm | |
| Z axis or repeat positioning accuracy | 0.01mm | |
| Diameter consistency | 0.03/300mm | |
| Flatness | 0.03/300mm | |
| Roughness | 0.8-1.6 | |
